DRAIN REPAIRS
With extensive experience in plumbing repairs, Matt and Amanda from M2F Plumbing Solutions ensure drainage repairs are handled efficiently and correctly.
We understand that a collapsed or damaged drain can feel overwhelming due to the complexity of the repair process. We prioritize keeping customers fully informed throughout the repair process and exploring alternative solutions to minimize disruption.
Rest assured, M2F Plumbing Solutions will manage the entire project from start to finish, delivering the best possible results.
UNDERTAKE CONCRETE WORKS ON COMPLETION.
UTILIZING HYDRO EXCAVATION AS NEEDED.
ARRANGING NECESSARY PERMITS.
Once your blockage is cleared, we’ll use CCTV to inspect the drain to determine the cause and assess its overall condition. If any damage is detected in the pipes, we’ll pinpoint its location and work with you to find the best solution.
PROCESS OF A STORMWATER DRAIN REPAIR
Water reported seeping out from the concrete during rainfall.
Identified numerous faults throughout the drain and coordinated with the customer to determine the best solution.
The cause of the water pooling around the base of the staircase.

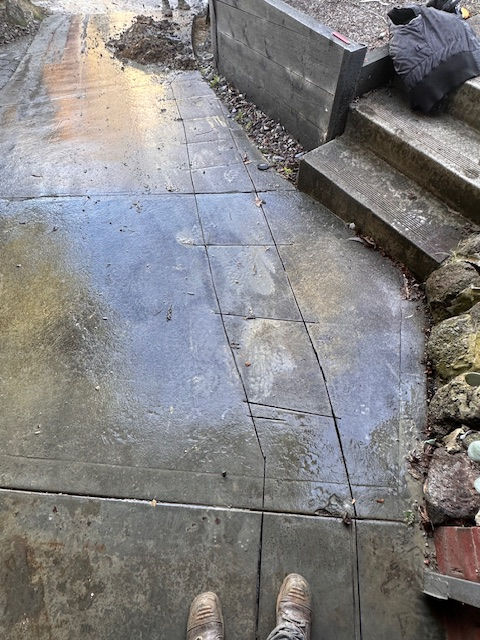

With numerous faults identified from the base of the stairs to the curb outlet, it was decided that the best solution was to renew this section of pipework instead of making spot repairs within the existing system. Using a demo to cut a trench through the concrete garage, driveway and footpath.
With numerous faults identified from the base of the stairs to the curb outlet, it was decided that the best solution was to renew this section of pipework instead of making spot repairs within the existing system. Using a demo to cut a trench through the concrete garage, driveway and footpath.
The base of the stairs where water was seeping out from the concrete. Once excavated was able to identify the damaged pipe, which had previously been repaired by others using Pipe Relining method. Unfortunately, in this case relining works were not done correctly.
The base of the stairs where water was seeping out from the concrete. Once excavated was able to identify the damaged pipe, which had previously been repaired by others using Pipe Relining method. Unfortunately, in this case relining works were not done correctly.
Removed concrete and hand excavated for new pipework installation. Disposing of all rubble in a skip bin onsite.
Removed concrete and hand excavated for new pipework installation. Disposing of all rubble in a skip bin onsite.
A new cast iron curb adapter connected to the newly installed PVC stormwater drain.
All council permits have been obtained to remove the footpath for the new line. Rock and mesh have been installed before concreting.
The garage is cleaned, the steel is installed, everything is ready for concrete.

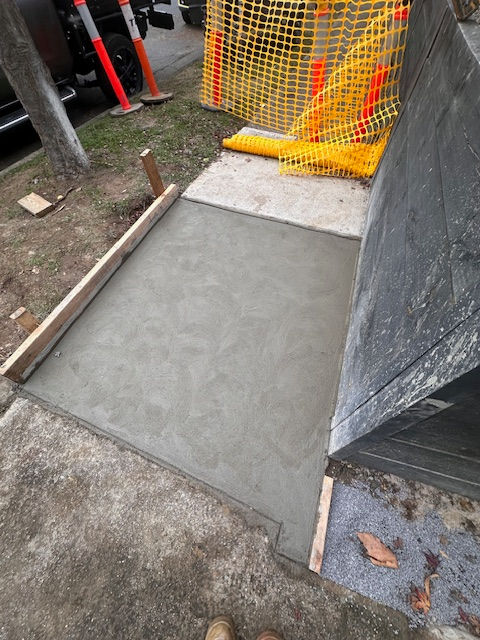

The concrete has been reinstated to the footpath.
Concreting the new cast iron curb adapter.

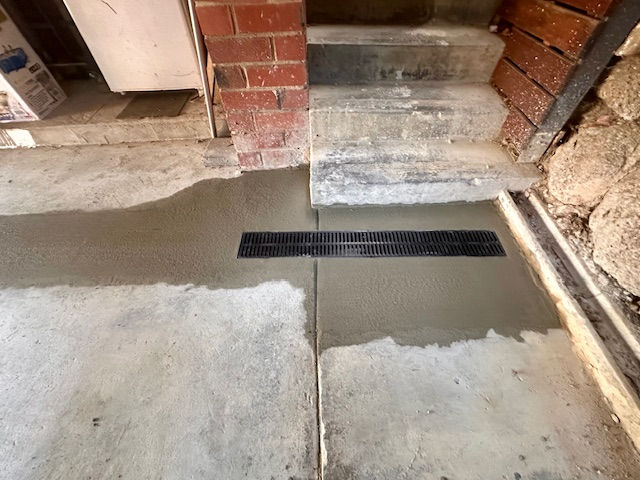

Concrete has been installed around the strip grate, designed to collect water flowing down from the retaining wall above.
Concrete installed to the garage.
Council signed off on all works to the footpath.
SEWER BOUNDARY SHAFT REPAIR
After clearing the blockage and using CCTV to identify damage to the boundary trap and lead-off junction, the locator was used to pinpoint the pipework.
After identifying the pipework requiring excavation, vegetation was cleared to enable the excavator to dig up the area.
Started excavation works.
Using the excavator to dig as deep as possible, the boundary trap reached over 2.5 meters in depth and was surrounded by footings.
Performed hydro excavation to safely expose the boundary trap, ensuring the footings remain intact.
To minimize disruption for homeowners, we expose all the existing earthenware pipes, enabling us to replace them with PVC as quickly as possible so that the sewer can be used again promptly.
New PVC pipework has been installed, enabling owners to use the sewer as usual. The next step involves ensuring the drain is properly bedded and risers are installed up to ground level.
Now that all the pipework has been installed and an inspection with the VBA has been completed, we can begin backfilling.
The area was backfilled, rubbish removed from the site, and landscaping completed to ensure the work area was left clean and tidy for our customers.
